Draw a signal from one participant to another like this:

# This is a comment.
Alice->Bob: Filled arrow
Alice->>Bob: Open arrow
Bob-->Alice: Dotted line
Bob-->>Alice: Dotted Line, open arrow
Bob<->Alice: Double arrow


The participants are automatically created when they are used. Use the "-->" syntax to draw a dotted line.

To include a colon in a participant name, enclose it in quotes.

":Alice"->":Bob": Hello

The next section describes how to save typing by declaring participant names.

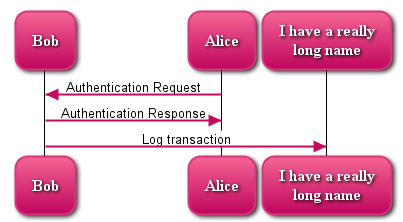

If you want to participants to be shown in a different order than they are used, declare them first using the participant keyword. You can also rename them this way to save typing.

participant Bob
participant Alice
participant "I have a really\nlong name" as L

Alice->Bob: Authentication Request
Bob->Alice: Authentication Response
Bob->L: Log transaction


A participant can send a signal to itself. This will result in an arrow that turns back on itself.

You may break the text into multiple lines by using "\n".

Alice->Alice: This is a signal to self.\nIt also demonstrates \nmultiline \ntext.

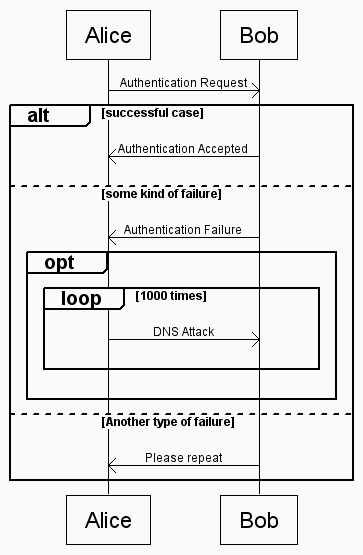

You can group signals together using the alt/else, opt, loop, and par keywords. All of them can take a text description that will be displayed in the group header. Use the end keyword to signal the end of a group. The groups may be nested to any depth.

Alice->Bob: Authentication Request
alt successful case
Bob->Alice: Authentication Accepted
else some kind of failure
Bob->Alice: Authentication Failure
opt
    loop 1000 times
        Alice->Bob: DNS Attack
    end
end
else Another type of failure
Bob->Alice: Please repeat
end


The else part is optional and can be repeated more than once for each condition.

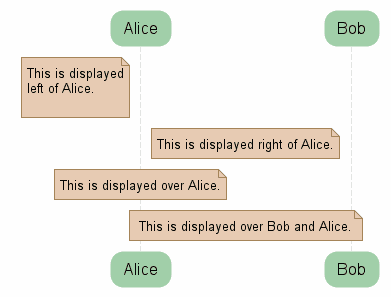

You can add notes to your diagram. Notes can be placed to the left of a participant or to the right of a participant. In addition, you can centre a note over one or more participants.

If a note contains more than one line, it will be not be word-wrapped. Instead, it will be formatted exactly as written.

participant Alice
participant Bob

note left of Alice
This is displayed
left of Alice.
end note
note right of Alice: This is displayed right of Alice.
note over Alice: This is displayed over Alice.
note over Alice, Bob: This is displayed over Bob and Alice.


Use the + and - with signals to denote object activation. While activated, the participant's lifeline will be highlighted. + will activate the receiver, and - will deactivate the sender.

Use * with signals to create a participant. A->*B: hello.

You can use the destroy keyword to destroy a participant. The participant's lifeline will end at the previous signal.

User->+A: DoWork
A->*+B: <<createRequest>>
B->*+C: DoWork
C-->B: WorkDone
destroy C
B-->-A: RequestCreated
A->User: Done

Alternate Syntax

Get more control over activations using the activate and deactivate keywords. The commands apply to the previous signal.

Alice->Bob: Do some work!
activate Bob

Bob->Bob: Work routine
activate Bob
deactivate Bob

Bob->Alice: All done!
deactivate Bob


Only arrows can cause activations

Activations and deactivations attach themselves to the previous signal. Neither a note or a state can cause a deactivation. If you want to deactivate spontaneously, use a signal-to-self.

A->+B: Activate please
B->-B: I'm deactivating now\n by myself


One arrow can activate/deactivate many participants at a time

A->B:
activate A
activate B

B->C:
deactivate A
deactivate B
activate C

C->C:
deactivate C

You can refer to and include other diagrams that you have saved in your account without retyping the text. Use the word include followed by the filename in quotes.

                title LTE Call Flow

                include "LTE Attach procedure"
                include "LTE Call Setup"


You can use any file to which you have access, including those in shared folders.

 You can explain the sequences that follow
 simply by indenting your explanations
 with a space.

Alice->Bob: Wow!

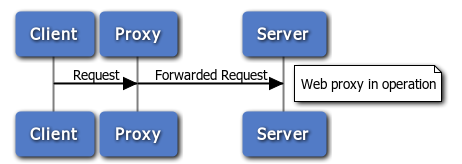

You can make different things happen at the same time using the parallel keyword.

parallel {
    Client->Proxy: Request
    Proxy->Server: Forwarded Request
    note right of Server: Web proxy in operation
}


Use the serial keyword within a parallel block to describe two parallel sequences of operations.

parallel {
    serial {
        Alice->Bob: Hello
        Bob->Alice: Hello
    }

    serial {
        Eve->Carol: Hello
        Carol->Eve: Hello
    }
}


A rounded box can be useful to show state information. The syntax is identical to the note keyword, except that state is used.

participant Client
participant Server
parallel {
    state over Server: LISTEN
    state over Client: CLOSED
}
Client->Server: SYN
parallel {
    state over Client: SYN-SENT
    state over Server: SYN_RECEIVED
}
Server->Client: ACK


Autonumbering will automatically prefix all signals with a number. To use it, include the line autonumber followed by the number to start with. To turn off autonumbering, use "autonumber off"

autonumber 2
UE->GANC: Register Request
GANC->UE: Register Reject

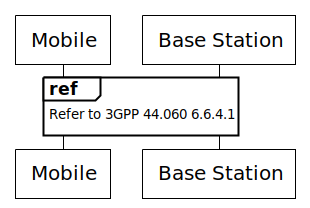

You can summarize or refer to sequences by drawing a box over one or more participants.

ref over Mobile, Base Station
   Refer to 3GPP 44.060 6.6.4.1
end ref


You can optionally have a signal going into the box or one coming out of it.

Alice->ref over Bob, Mary: input
   refer to other diagram
end ref -->Alice: output


Change the way the bottom of your diagram looks using option footer=.

option footer=none
Alice->Alice:


option footer=bar
Alice->Alice:
